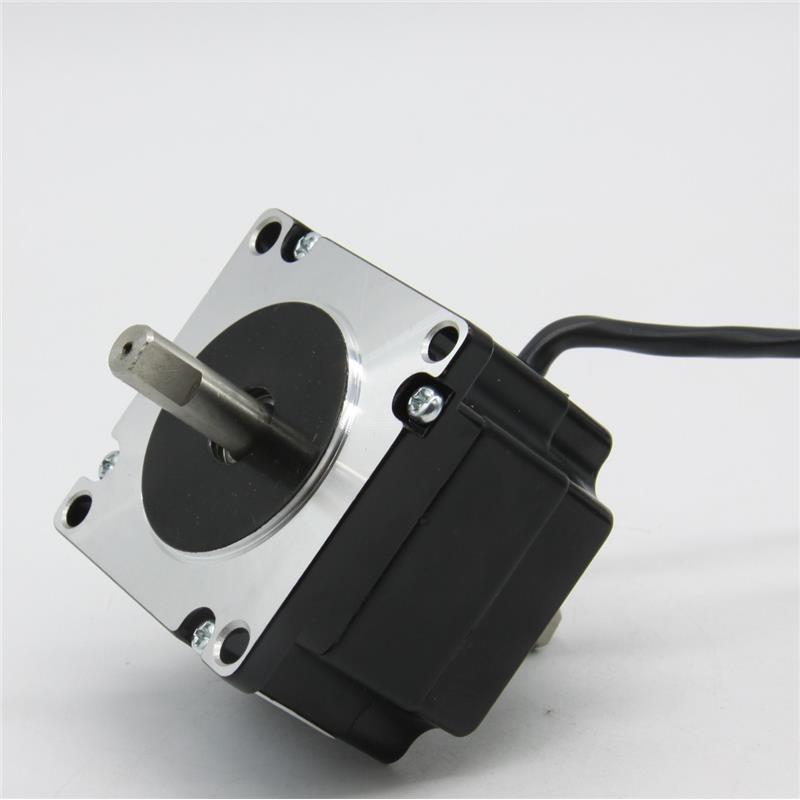

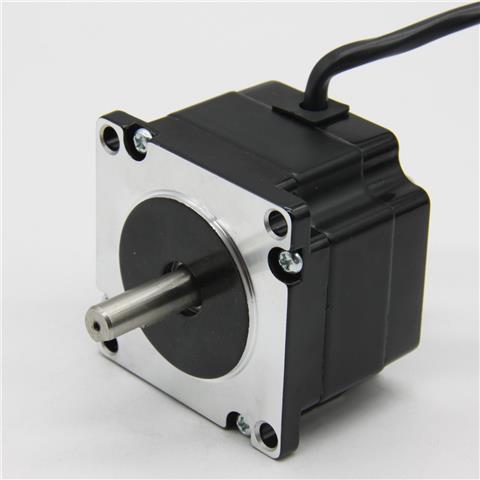

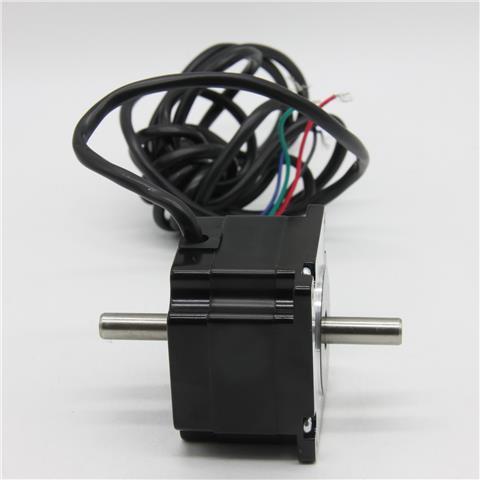

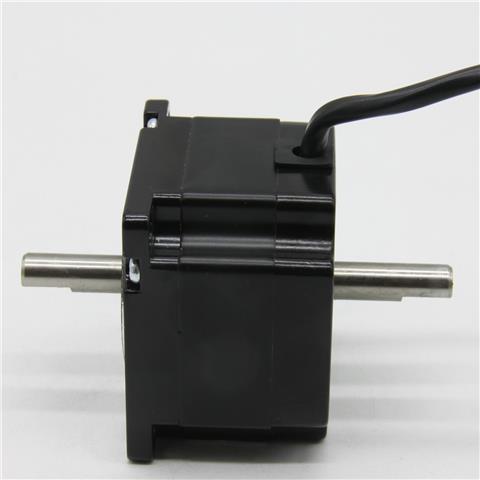

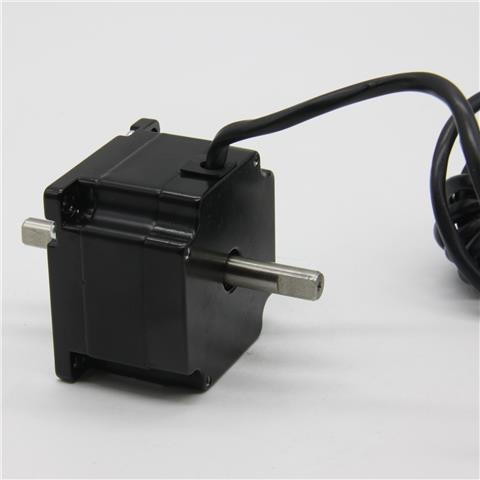

23HS0425-24L25-8B1

23HS0425-24L25-8B1

2 phase,1.8 degree,nema 23,size 57x57x41mm,rated current/phase 2.5A,holding torque 0.6Nm (85oz.in),double shaft(dia 8mm) with flat, 4 wires cables

Price$22.40

Number 0 In Stock

Price Break
Qty Price($)
1-10 22.40
11-20 17.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23HS0425-24L25-8B1

Phase:2

Step Angle: 1.8 deg

Holding Torque: 0.6Nm(85oz.in)

Rated Current/phase: 2.5A

Voltage: 2.0V

Inductance: 2.2mH ± 20%(1KHz)

Phase Resistance: 0.8ohms

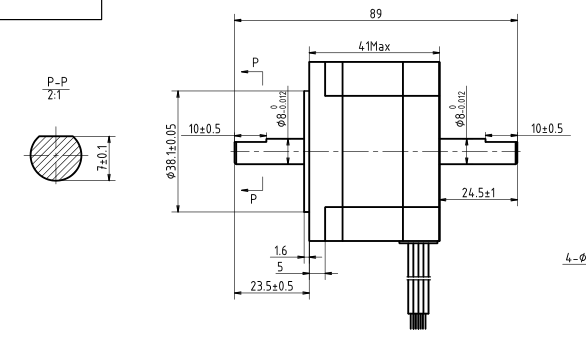

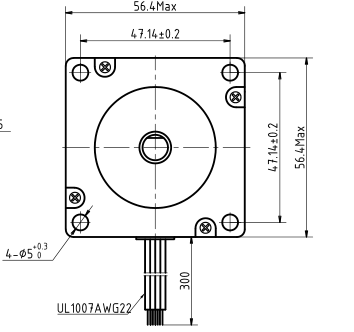

Frame Size: 57 x 57mm

Body Length: 41mm

Shaft Diameter: Φ8mm D-cut

Shaft Length: 23.5mm

rear shaft Dia:Φ8mm D-cut

rear shaft length:24.5mm

Number of Leads: 4

cable Length: 300mm

weight: 0.6kg
