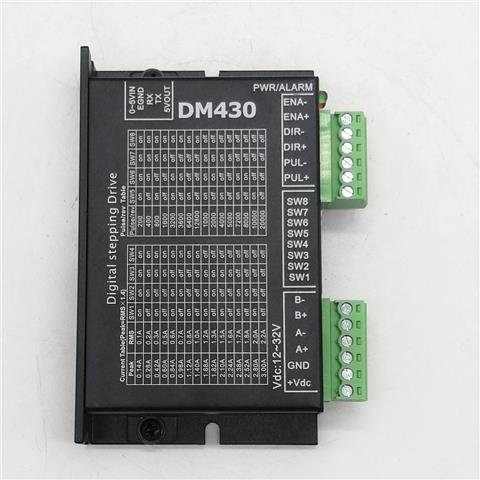

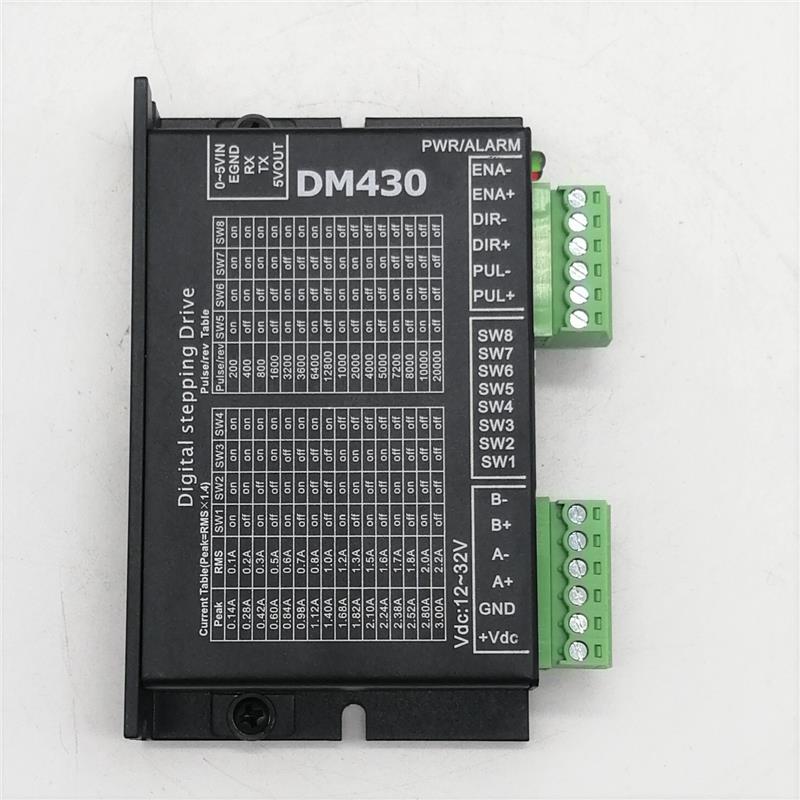

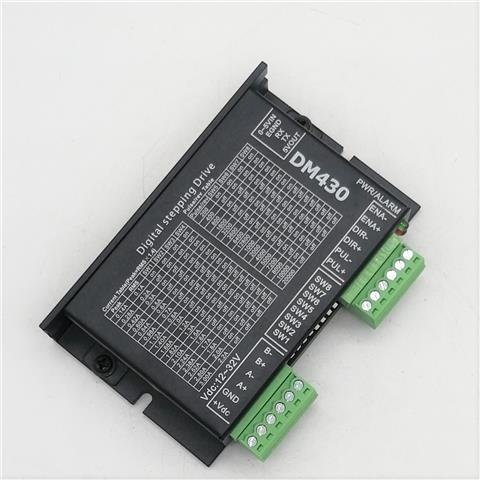

●New 32-bit ARM technology
●Ultra low vibration noise
● Built-in high subdivision
● Parameter power-on auto-tuning function
● Variable current control makes the motor heat greatly reduced
●The current is automatically halved at rest
●Can drive 4,6,8 line two-phase stepper motor
● Optically isolated differential signal input
●The impulse response frequency can reach up to 500KHz (factory default 160KHz)
●The current setting is convenient, and can be arbitrarily selected between 0.1-3.0A
●The subdivision setting range is 200-51200
● With overvoltage, undervoltage, overcurrent protection
|
Description
|
DM430
|
|
Min
|
Typical
|
Max
|
Unit
|
|
Output current
|
0.1
|
-
|
3.0
|
A
|
|
Input supply voltage
|
12
|
24
|
32
|
VDC
|
|
Control signal input current
|
6
|
10
|
16
|
mA
|
|
Control signal interface level
|
4.5
|
5
|
28
|
Vdc
|
|
Input signal minimum pulse width
|
1.5
|
-
|
-
|
us
|
|
Step pulse frequency
|
0
|
-
|
160
|
KHz
|
|
Insulation resistance
|
500
|
|
|
MΩ
|
|
Cooling
|
Natural Cooling or Forced cooling
|
|
Operating Environment
|
Environment
|
Avoid dust, oil fog and corrosive gases
|
|
Ambient Temperature
|
-5℃ ～ +50℃
|
|
Humidity
|
40 ～ 90%RH
|
|
Vibration
|
5.9m/s2MAX
|
|
Storage Temperature
|
-20℃～80℃
|
|
weight
|
about 300 g
|

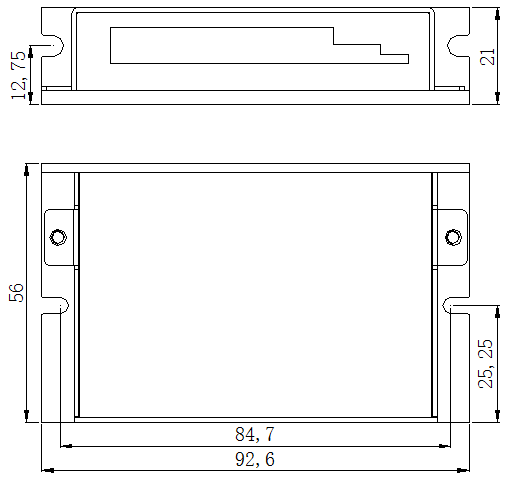

Mechanical Specifications (unit: mm [inch])
DM430 manual
