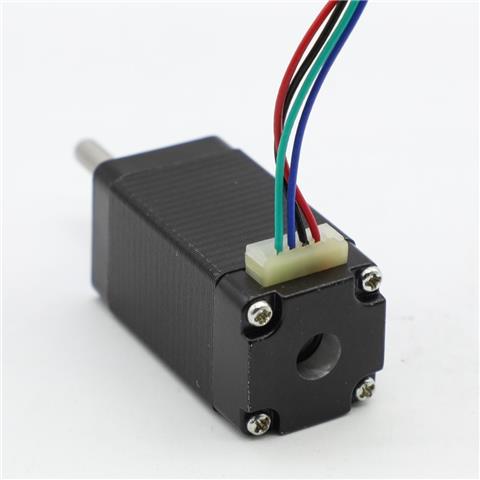

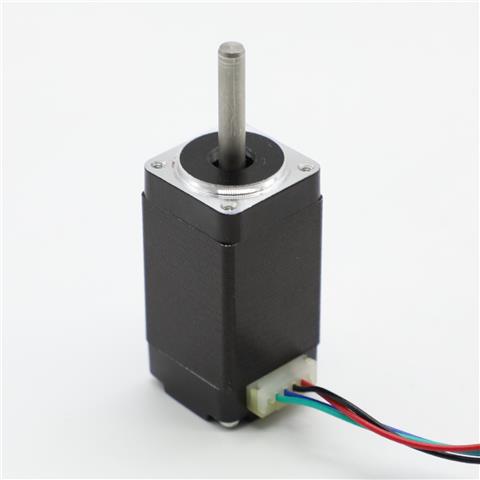

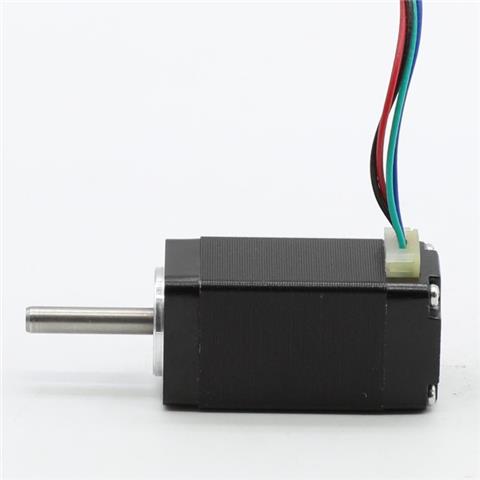

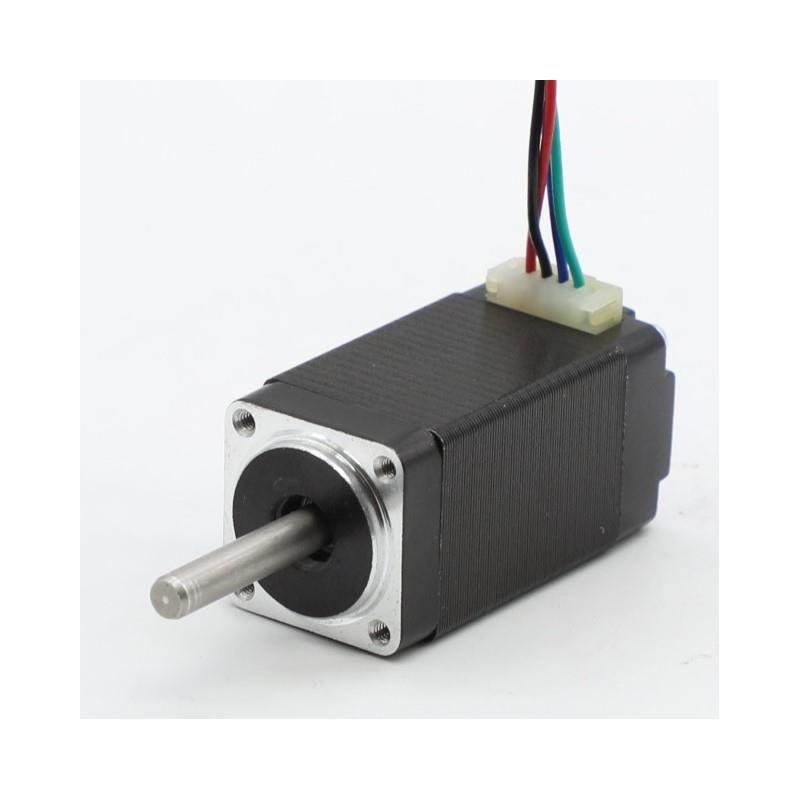

8HS4406

8HS4406

2 phase,1.8 degree,nema 8,size 20x20x40mm, rated current/phase 0.6A, holding torque 2.6Ncm (3.7oz.in),single shaft,4 wires

Price$15.30

Number 0 In Stock

Price Break
Qty Price($)
1-3 15.30
4-10 14.80
11-20 14.30
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 8HS4406

Phase:2

Step Angle: 1.8 deg

Holding Torque: 2.6Ncm(3.7oz.in)

Rated Current/phase: 0.6A

Voltage: 3.48V

Inductance: 1.6mH ± 20%(1KHz)

Phase Resistance: 5.8ohms

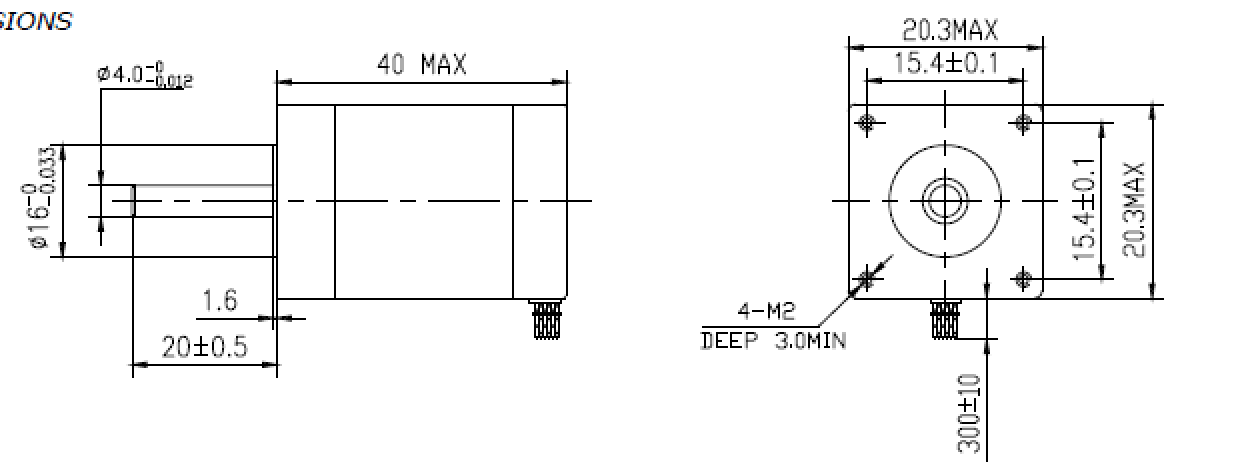

Frame Size: 20 x 20mm

Body Length: 40mm

Shaft Diameter: Φ4mm

Shaft Length: 20mm

Lead Length: 300mm


Tags: nema 8, 8HS4406, bipolar, 1.8deg, 0.6A,3.48V,2.6Ncm, (3.7oz.in),20x20x40mm, 4 ,wires,
