17HS5425L20P1-X3

17HS5425L20P1-X3

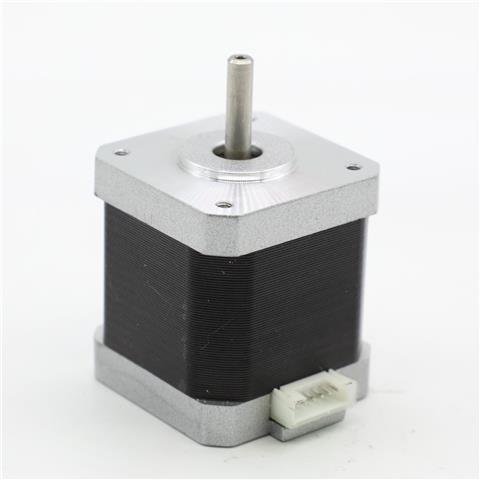

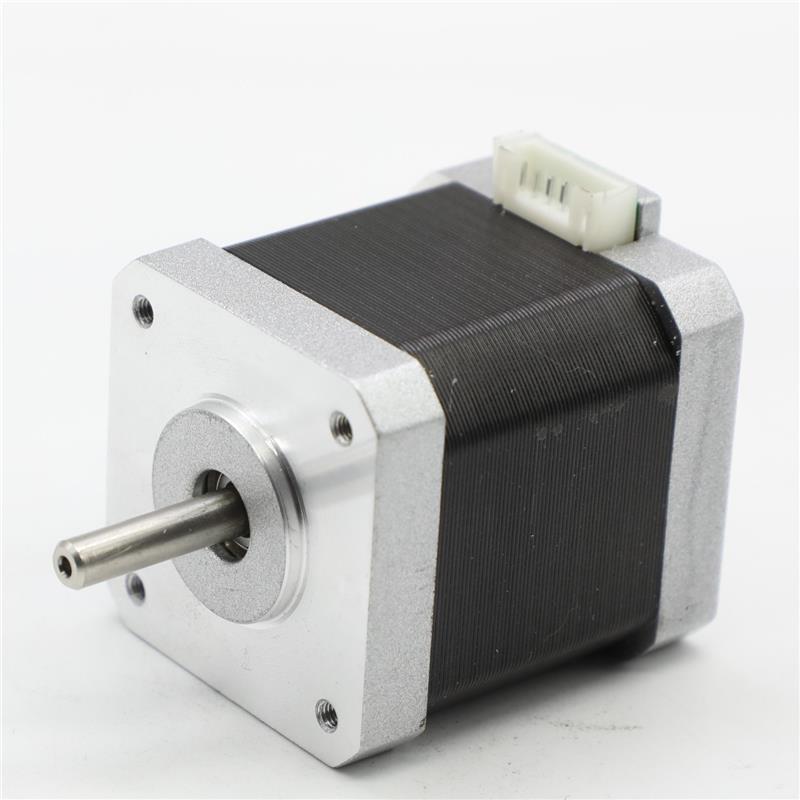

2 phase,1.8 degree,nema 17,size 42x42x48mm,rated current/phase 2.5A,holding torque 48Ncm(68oz.in),single shaft with flat, 4 wires,JST PH-6 connector

Price$15.50

Number 1000 In Stock

Price Break
Qty Price($)
1-5 15.50
6-10 13.50
11-20 12.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 17HS5425L20P1-X3

Phase:2

Step Angle: 1.8 deg

Holding Torque: 48Ncm(68oz.in)

Rated Current/phase: 2.5A

Voltage: 3.1V

Inductance: 1.8mH ± 20%(1KHz)

Phase Resistance: 1.25ohms



Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

Number of Leads: 4

JST PH-6 connector
