23H76-284AIP68

23H76-284AIP68

2 phase,1.8 degree,nema 23,size 57x57x76mm,rated current/phase 2.8A,holding torque 189Ncm,single shaft with flat, 4 wires

Price$51.00

Number 100 In Stock

Price Break
Qty Price($)
1-9 51.00
Contact us for qty 10 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23H76-284AIP68

Phase:2

Step Angle: 1.8 deg

Holding Torque: 189Ncm

Rated Current/phase: 2.8A

Voltage: 5.5V

Inductance: 5.2mH ± 20%(1KHz)

Phase Resistance: 1.95hms

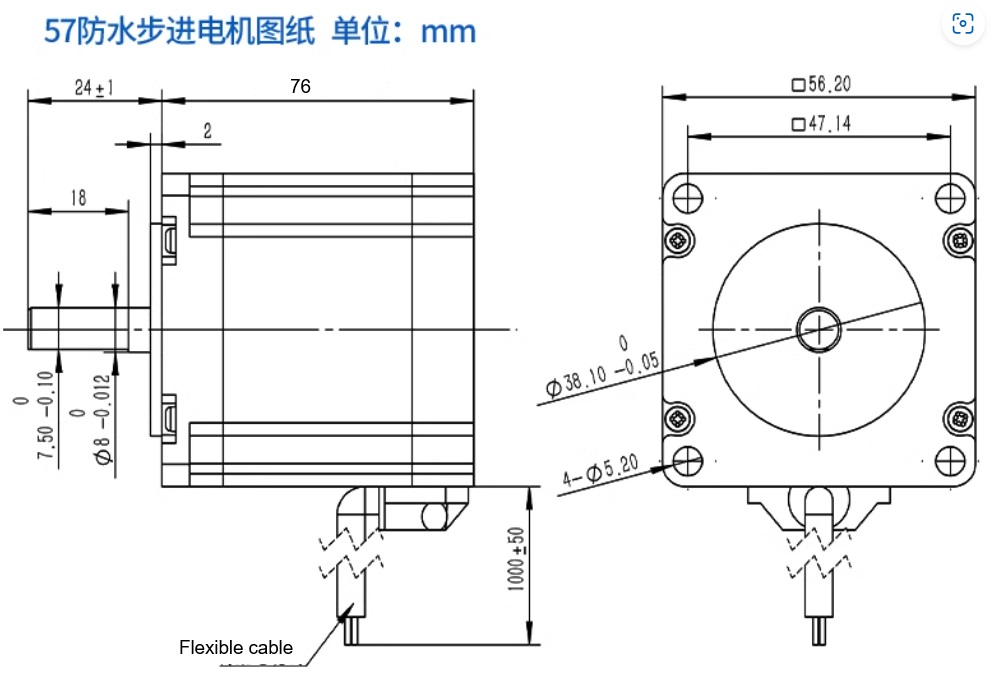

Frame Size: 57 x 57mm

Body Length: 76mm

Shaft Diameter: Φ8mm

Shaft Length: 24mm

D-Cut Length:18mm

Number of Leads: 4

Lead Length: 1000mm
