sysmotor> Home> 34H80-604AIP68

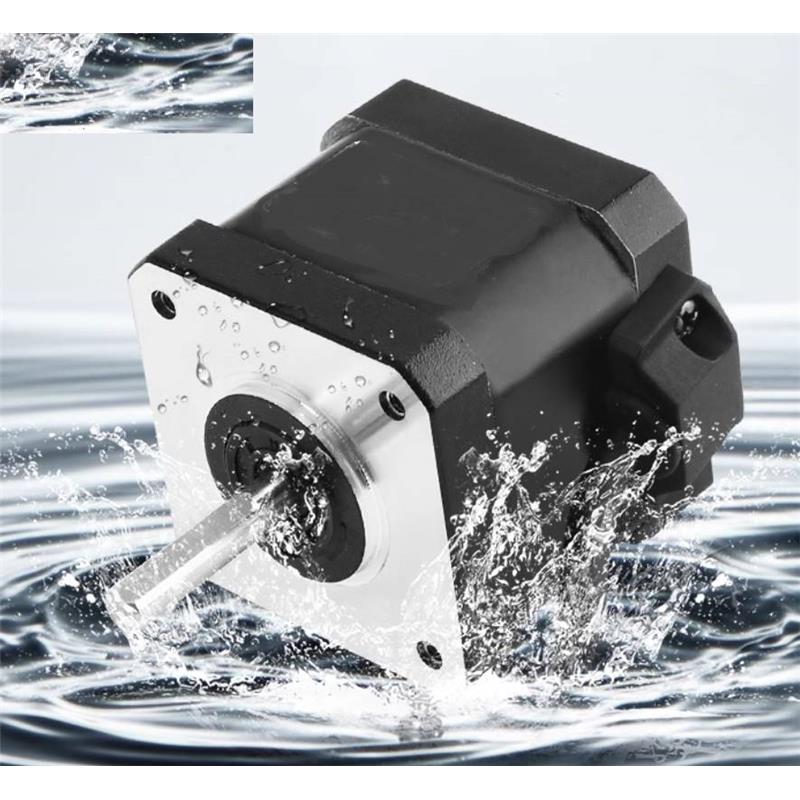

34H80-604AIP68

34H80-604AIP68

2 phase,1.8 degree,nema 34,size 86x86x80mm,rated current/phase 6.0A,holding torque 4Nm,single shaft with flat, 4 wires

Price$66.00

Number 100 In Stock

Price Break
Qty Price($)
1-8 66.00
Contact us for qty 10 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

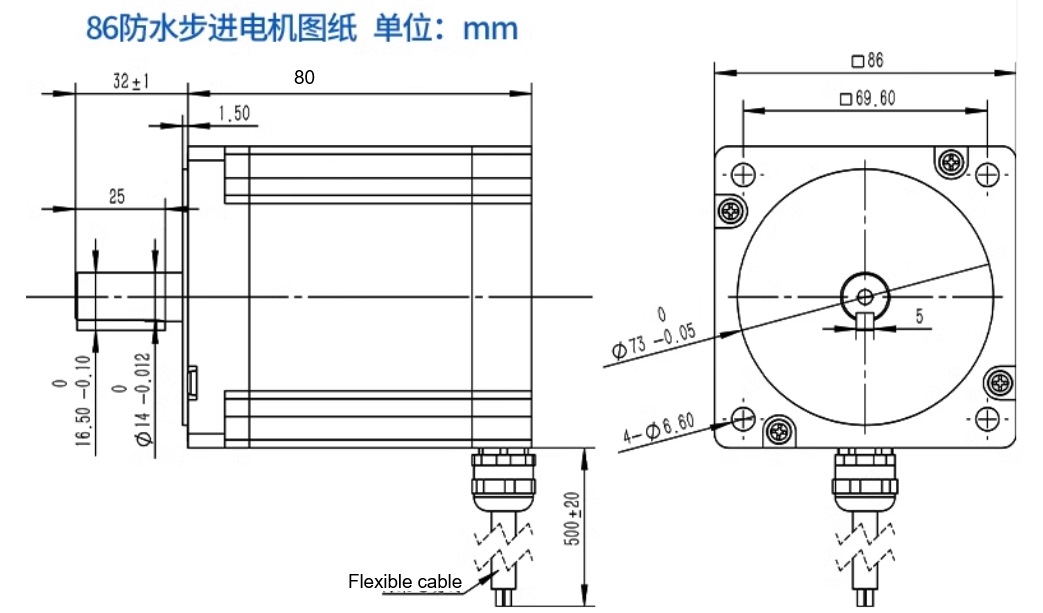

Model: 34H80-604AIP68

Phase:2

Step Angle: 1.8 deg

Holding Torque: 4Nm

Rated Current/phase: 6.0A

Voltage: 1.5V

Inductance: 1.9mH ± 20%(1KHz)

Phase Resistance: 0.25hms



Frame Size: 86 x 86mm

Body Length: 80mm

Shaft Diameter: Φ14mm

Shaft Length: 32mm

D-Cut Length:25mm

Number of Leads: 4

Lead Length: 500mm
