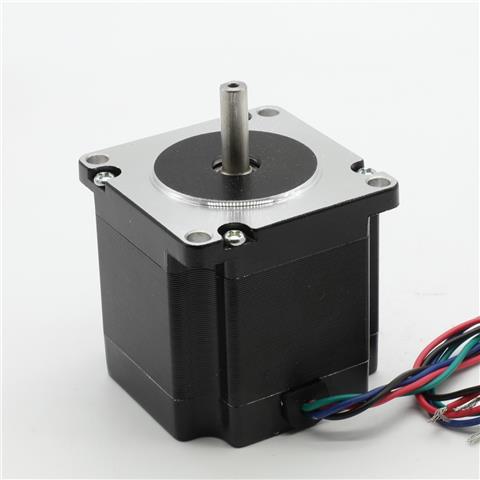

23HS6442P1-1

23HS6442P1-1

2 phase,1.8 degree,nema 23,size 57x57x55mm,rated current/phase 4.2A, holding torque 1.1Nm (156oz.in),single shaft with flat,4 wires

Price$26.00

Number 1000 In Stock

Price Break
Qty Price($)
1-10 26.00
11-20 20.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23HS6442P1-1

Phase:2

Step Angle: 1.8 deg

Holding Torque: 1.1Nm(156oz.in)

Rated Current/phase: 4.2A

Voltage: 1.68V

Inductance: 1.2mH ± 20%(1KHz)

Phase Resistance: 0.4ohms



Frame Size: 57 x 57mm

Body Length: 56mm

Shaft Diameter: Φ6.35mm

Shaft Length: 21mm with 15mm flat

Number of Leads: 4

Lead Length: 300mm
