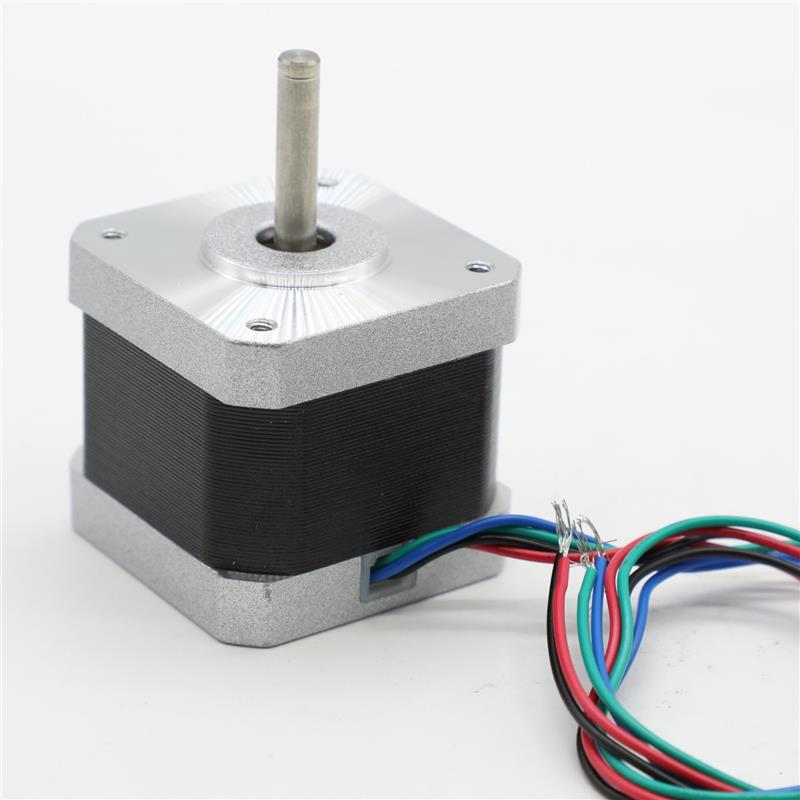

17HS4412-1

17HS4412-1

2 phase,1.8 degree,nema 17,size 42x42x40mm,rated current/phase 1.2A, holding torque 45Ncm(64oz.in),single shaft, 4 wires

Price$13.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 13.00
6-10 10.50
11-20 9.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

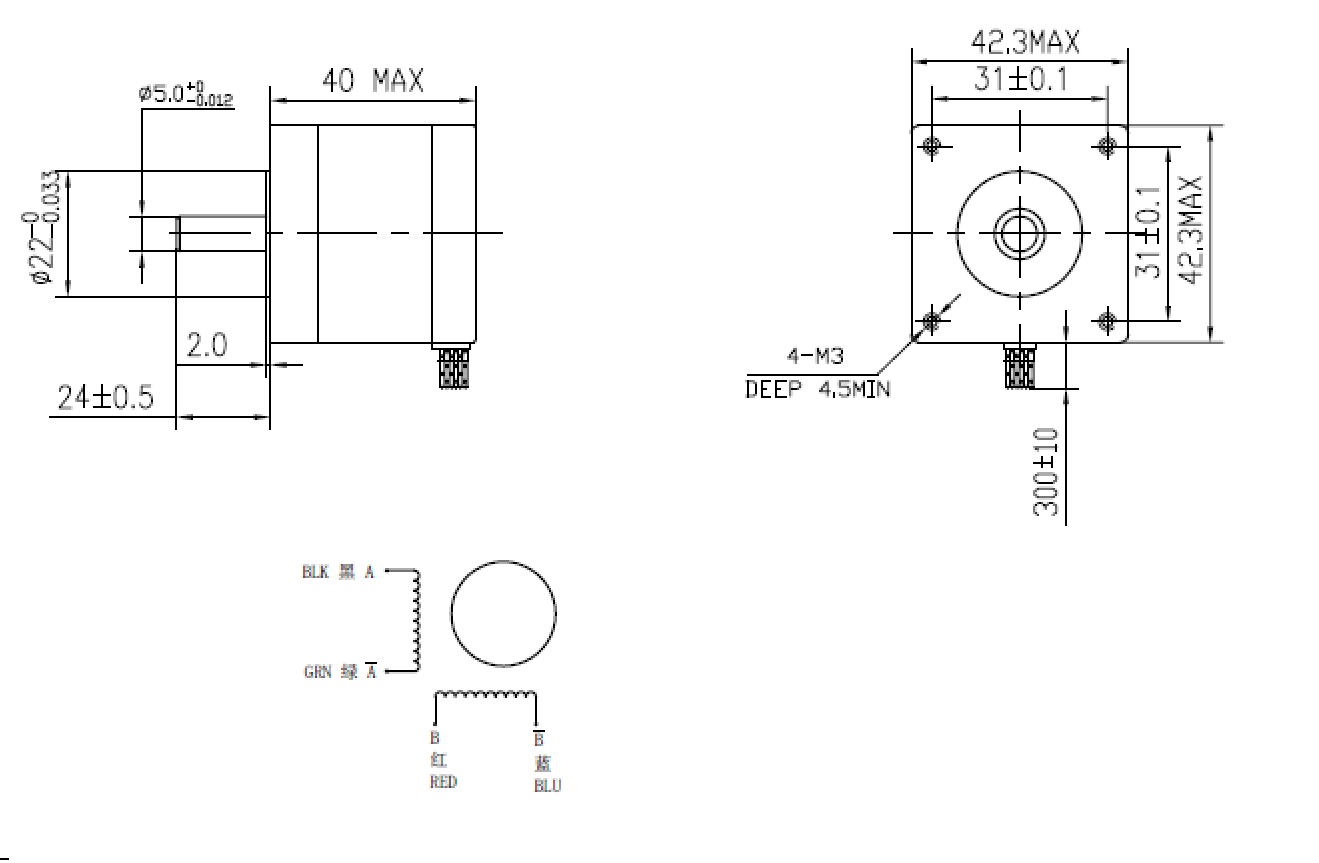

Model: 17HS4412-1

Phase:2

Step Angle: 1.8 deg

Holding Torque:45Ncm(64oz.in)

Rated Current/phase: 1.2A

Voltage: 7.2V

Inductance: 13mH ± 20%(1KHz)

Phase Resistance: 6.0ohms



Frame Size: 42 x 42mm

Body Length: 40mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

Number of Leads: 4

Lead Length: 300mm
