23HS6620

23HS6620

2 phase,1.8 degree,nema 23,size 57x57x56mm,rated current/phase 2.0A,holding torque 0.9Nm (127z.in),single shaft, 6 wires

Price$26.00

Number 1000 In Stock

Price Break
Qty Price($)
1-10 26.00
11-20 20.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

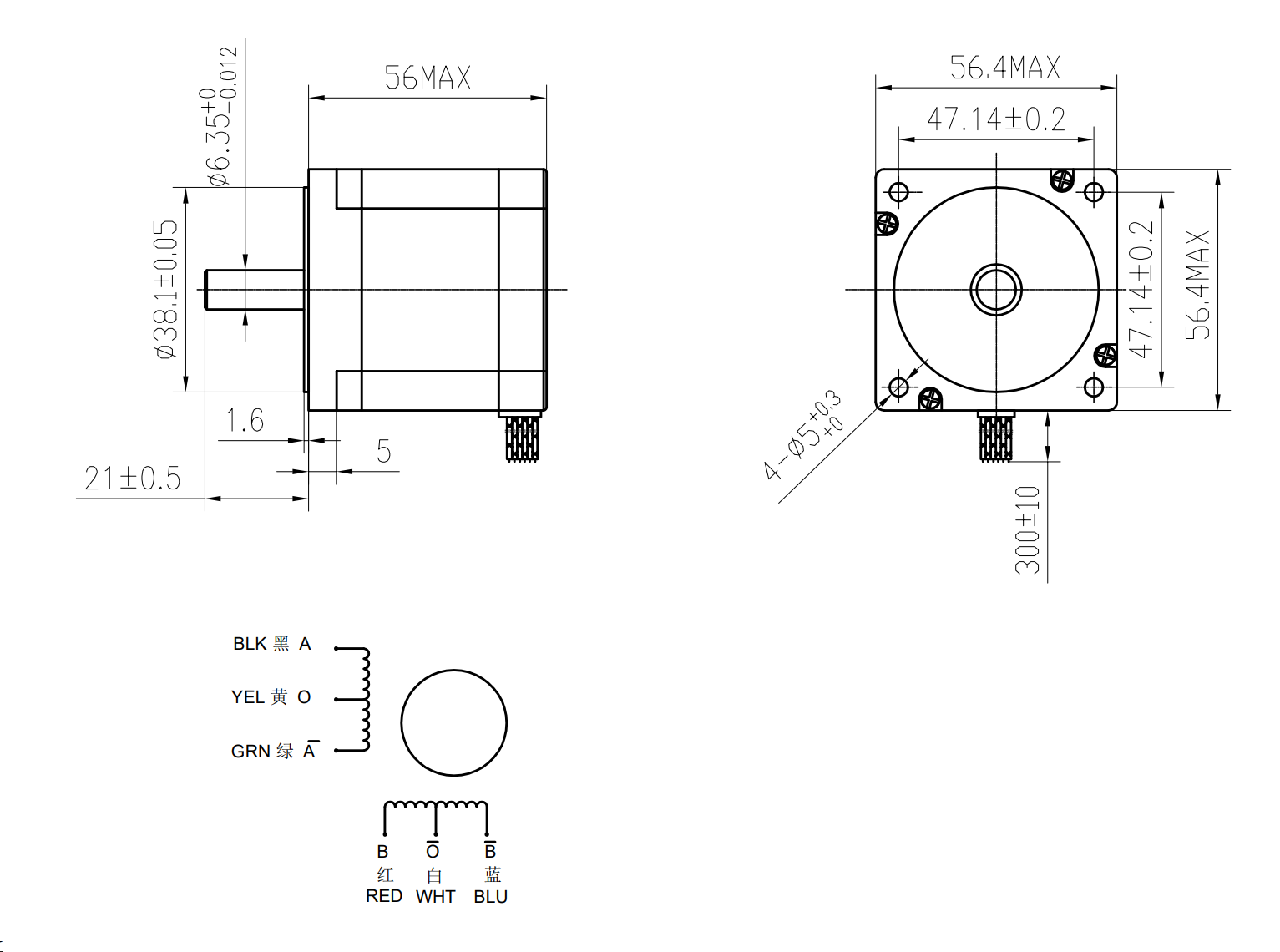

Model: 23HS6620

Phase:2

Step Angle: 1.8 deg

Holding Torque: 0.9Nm(127oz.in)

Rated Current/phase: 2.0A

Voltage: 2.8V

Inductance: 2.5mH ± 20%(1KHz)

Phase Resistance: 1.4ohms



Frame Size: 57 x 57mm

Body Length: 56mm

Shaft Diameter: Φ6.35mm

Shaft Length: 21mm

Number of Leads: 6

Lead Length: 300mm
