sysmotor> Home> 23HS8430P7.5-15

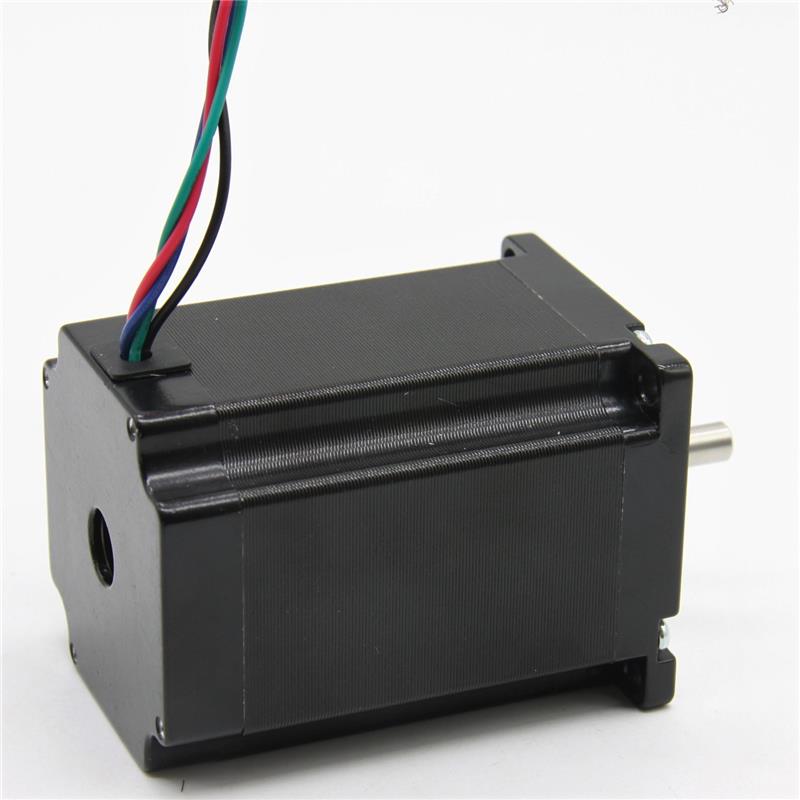

23HS8430P7.5-15

23HS8430P7.5-15

2 phase,1.8 degree,nema 23,size 57x57x76mm,rated current/phase 3.0A,holding torque 1.5Nm (212oz.in),single shaft(8mm) with flat, 4 wires

Price$35.00

Number 1000 In Stock

Price Break
Qty Price($)
1-10 35.00
11-20 27.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23HS8430P7.5-15

Phase:2

Step Angle: 1.8 deg

Holding Torque: 1.5Nm(212oz.in)

Rated Current/phase: 3.0A

Voltage: 1.2V

Inductance: 1.8mH ± 20%(1KHz)

Phase Resistance: 0.4ohms

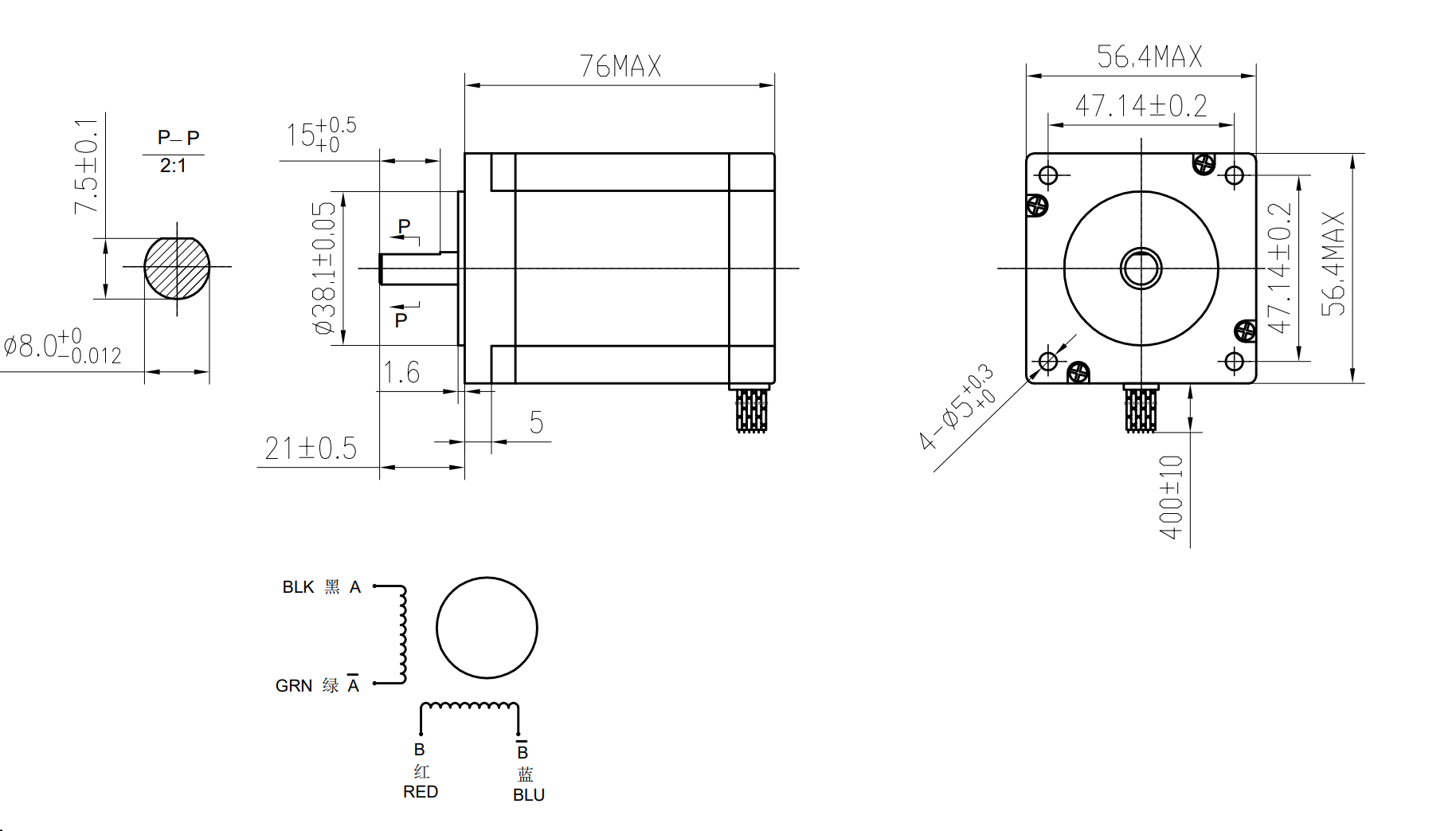

Frame Size: 57 x 57mm

Body Length: 76mm

Shaft Diameter: Φ8mm

Shaft Length: 21mm

D-cut length:15mm

Number of Leads: 4

Lead Length: 300mm
