sysmotor> Home> 34HS5435

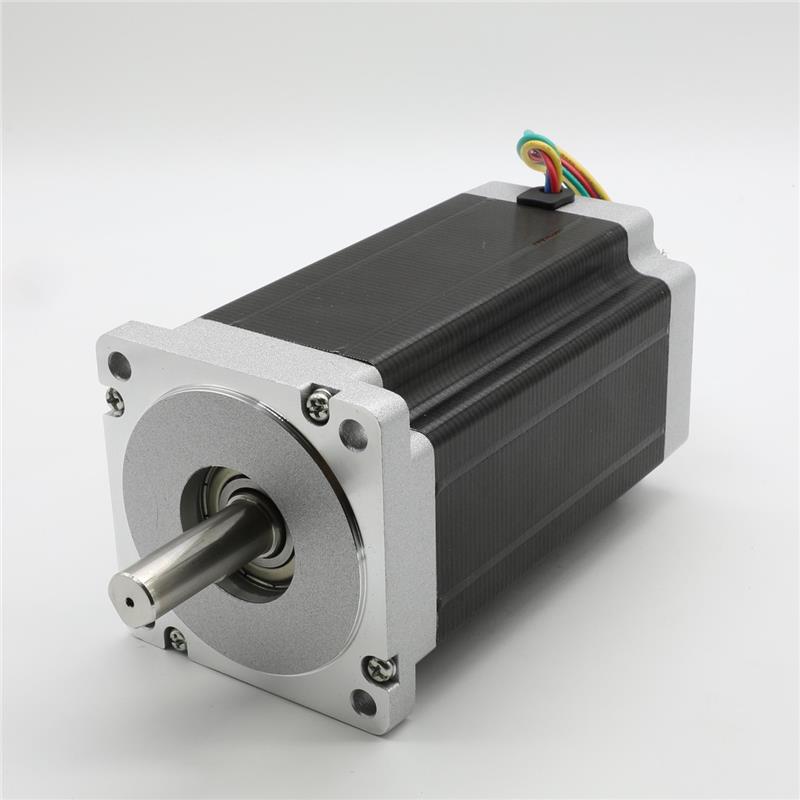

34HS5435

34HS5435

2 phase,1.8 degree,nema 34,size 86x86x152mm,holding torque 12Nm(1700ozin),rated current 3.5A/phase,single shaft(dia 14mm) with 2-flat, 4 wires

Price$70.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 70.00
6-10 68.00
11-20 66.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 34HS5435

Phase:2

Step Angle: 1.8 deg

Holding Torque: 12Nm(1700oz.in)

Rated Current/phase: 3.5A

Voltage: 5.6V

Inductance: 23.50mH ± 20%(1KHz)

Phase Resistance: 1.6ohms



Frame Size: 86 x 86mm

Body Length: 152mm

Shaft Diameter: Φ14mm

Shaft Length: 37mm

2 D-cut length:25mm

Number of Leads: 4

Lead Length: 300mm
