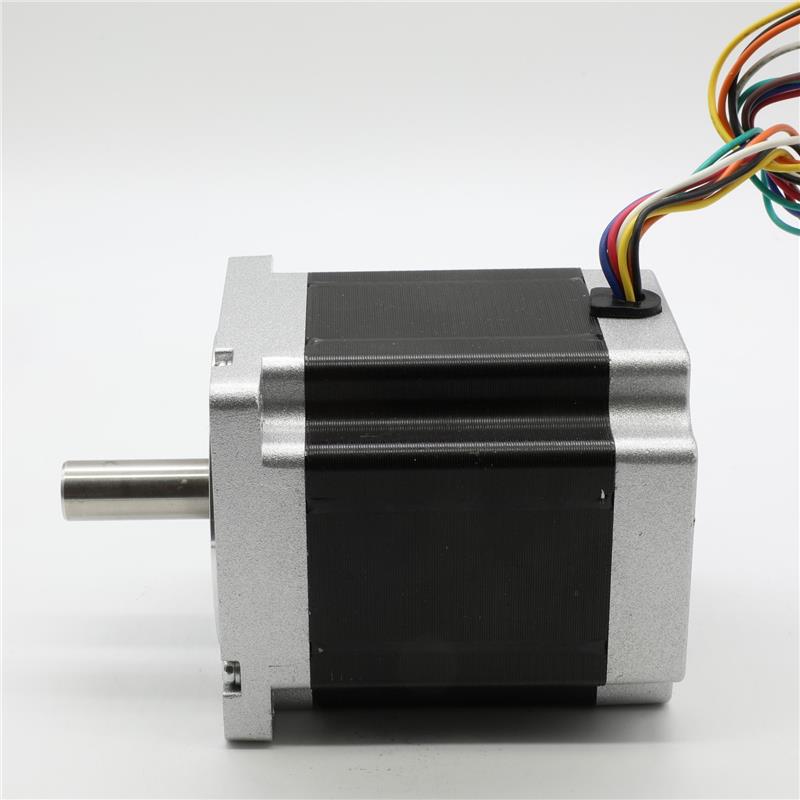

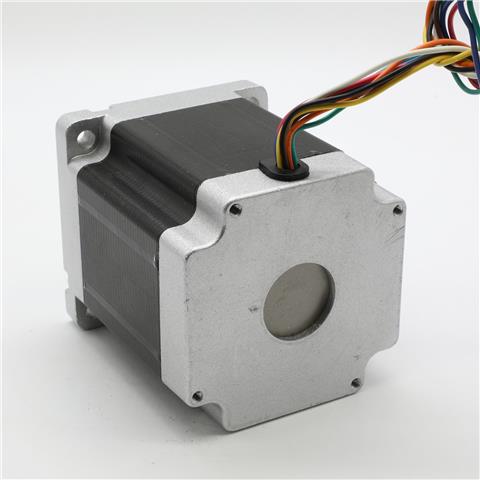

34HS9840

34HS9840

2 phase,1.8 degree,nema 34,size 86x86x100mm,holding torque 7.70Nm(1090ozin),rated current(bipolar) 5.6A/phase,single shaft(dia 14mm) with 2-flat, 8 wires

Price$51.00

Number 1000 In Stock

Price Break
Qty Price($)
1-5 51.00
6-10 50.00
11-20 49.00
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

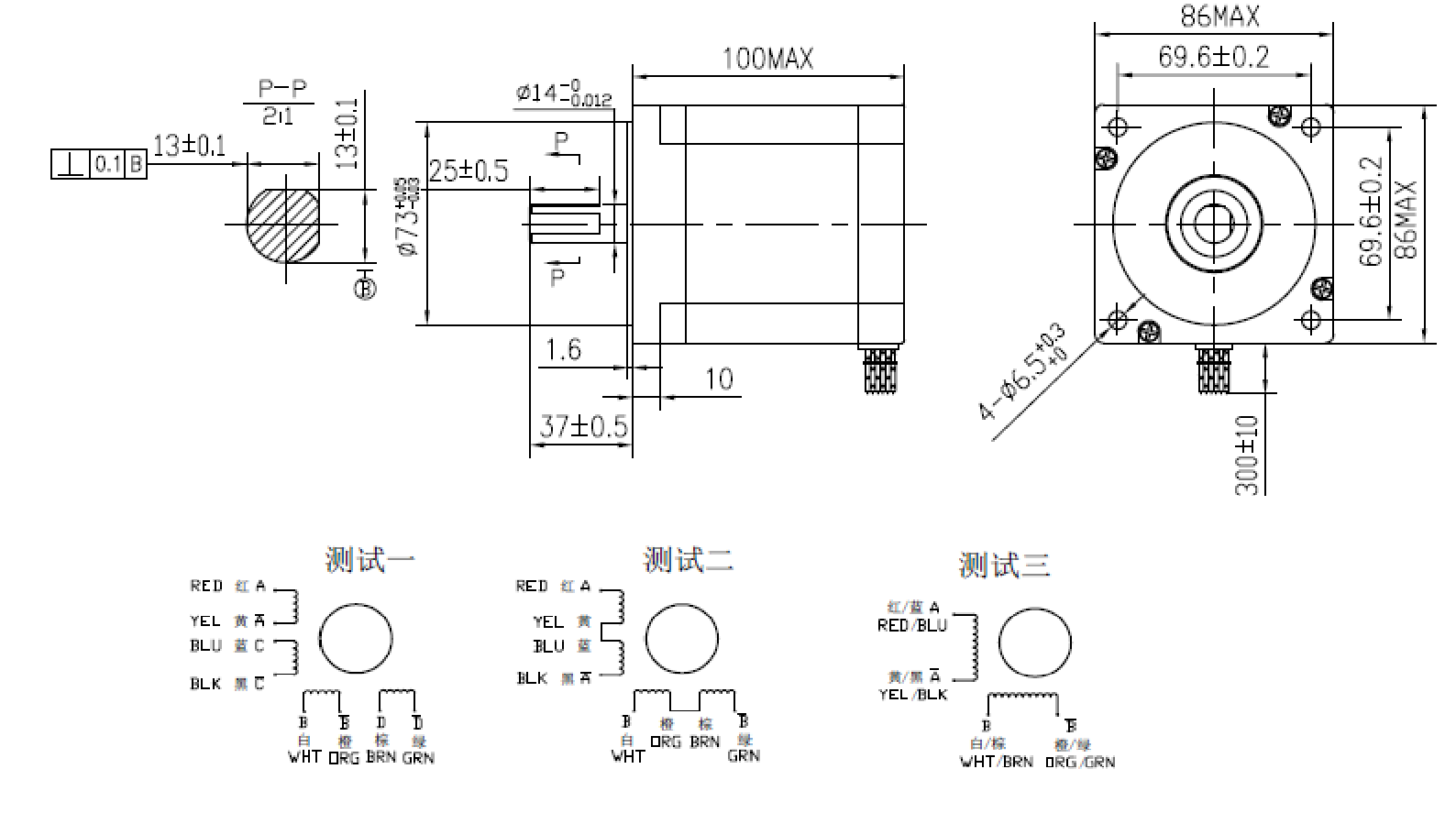

Model: 34HS9840

Phase:2

Step Angle: 1.8 deg

Frame Size: 86 x 86mm

Body Length: 100mm

Shaft Diameter: Φ14mm

Shaft Length: 37mm

2 D-cut Length:25mm

Lead Length: 300mm

Weight: 3.40kg




Unipolar

Bipolar

(Series)

Bipolar

(Parallel)

Holding Torque

Nm

5.5

7.7

7.7

Rated

Current/Phase

A

4.0

2.8

5.6

Phase Resistance

Ohms±10%

0.8

1.6

0.4

Phase Inductance

mH ± 20%

3.5

14

3.5
