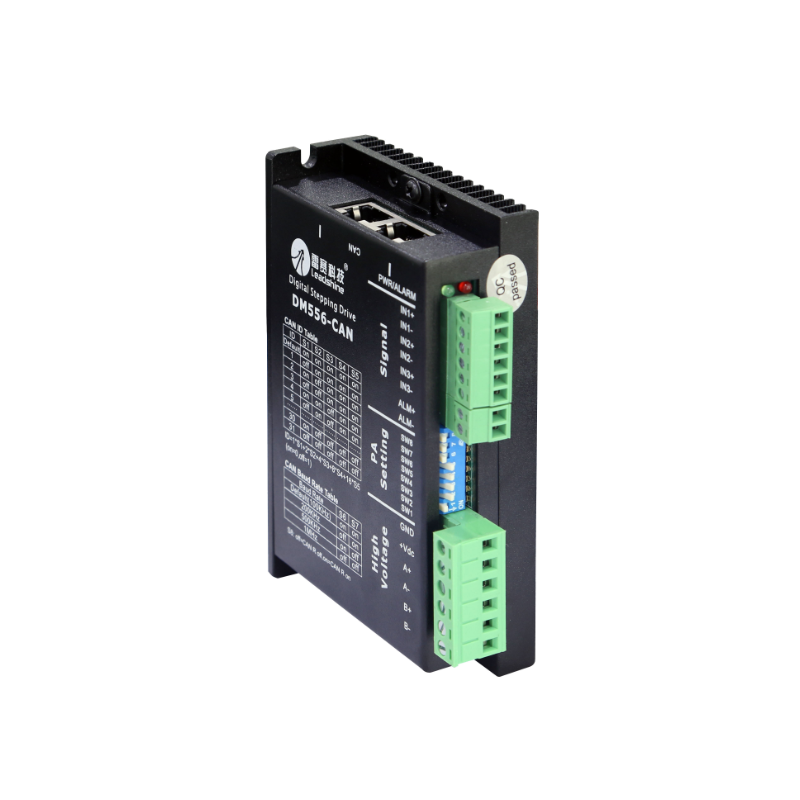

Can drive 4-wire and 8-wire two-phase stepper motors;
Voltage input range: 20~50 VDC, recommended working voltage 36V;
Maximum current: 5.6A;
Support CANopen communication protocol, compatible with mainstream CANOpen master stations on the market;
Subdivision range: 200~51200 ppr;
3 IO input function, differential isolation input, input voltage +5~24V compatible;
1 channel of alarm output function, isolated OC output, maximum output capacity of 100mA;
Optical isolation signal input, strong anti-interference ability;
With protection functions such as overvoltage and overcurrent;
|
parameter
|
DM522-CAN
|
|
Minimum
|
Typical
|
Maximum
|
Unit
|
|
Output
current (peak value)
|
1.0
|
/
|
5.6
|
A
|
|
Power
supply voltage (DC)
|
20
|
36
|
50
|
V
|
|
IO
input current
|
6
|
10
|
16
|
mA
|
|
IO
input voltage
|
5
|
/
|
24
|
V
|
|
insulation
|
50
|
/
|
/
|
MΩ
|
