Feature:
● Miniature size 42.3mm*42.3mm*13.5mm (L*W*H)
● Integrally designed to fit onto motors seamlessly, as well asÜ work standalone
● Wide range input voltage 10-40VDC
● Max 4A adjustable output current
● 1 to 16th micro step resolution
● Dual full H-bridge with PWM constant current control
● Enable/shutdown input for power saving
● Optoisolated inputs with common anodeÜ
● Die-cast aluminum enclosure, improve heat radiation and durability
Description:

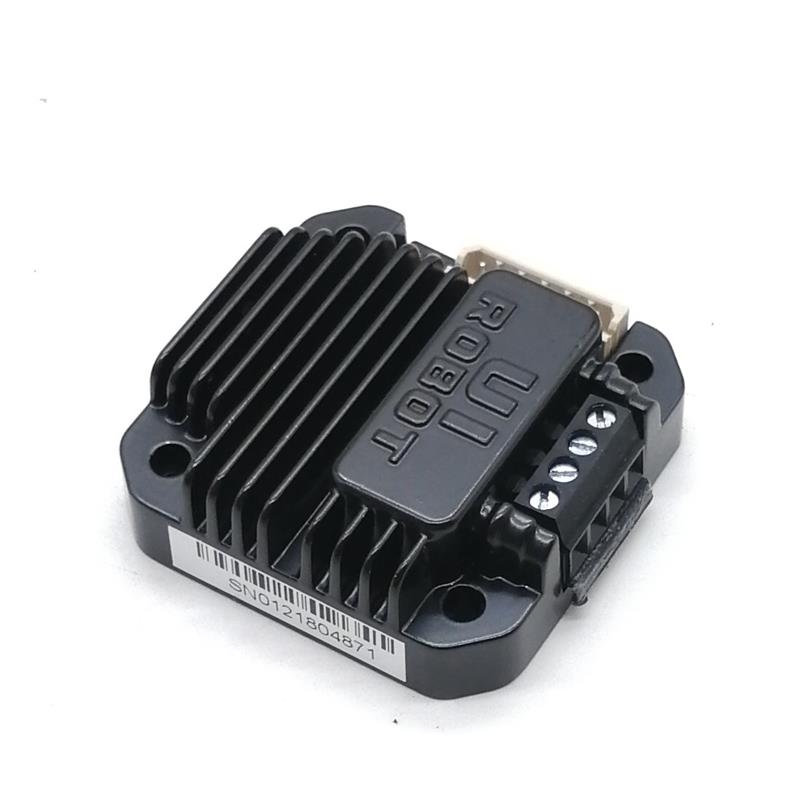

240xx Miniature Stepper Motor Driver is a series of miniature, high performance stepper motor driver.
They can be mounted onto frame 17, 23, 34 and 42 stepper motors seamlessly through corresponding
flanges. The thickness of these drivers is less than 14 mm. 24002 is capable to provide 0-2A adjustable
current. 24004 is capable for 1.6-4A adjustable current output and 24008 is capable for 2A-8A adjustable
current output. Their mixed-decay current control reduces the back-EMF effect under high motor speed
and improves the performance. Except that 24002 takes 10-35VDC input, 240xx series drivers can work
on 12 to 40VDC input. Enclosure is made of die-cast aluminum which provides a rugged durable protection
and improves the heat dissipation.
