23HS5821D7B55

23HS5821D7B55

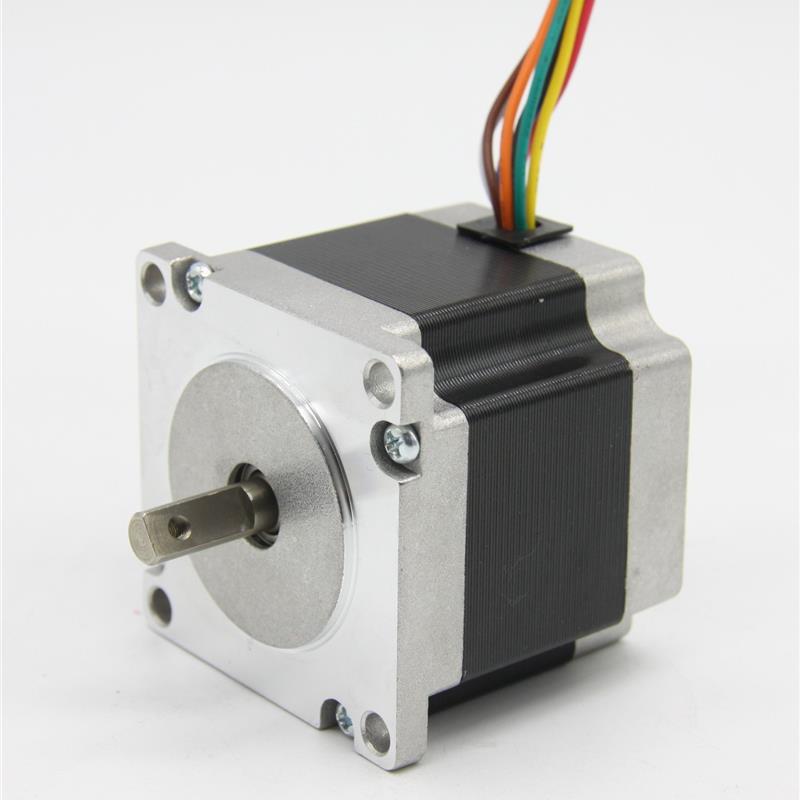

2 phase,1.8 degree,nema 23,size 57x57x51mm,rated current/phase 3A,holding torque 0.8Nm(114oz.in),single shaft(dia 7mm),flat shaft with hole,8 wires

Price$24.00

Number 10 In Stock

Price Break
Qty Price($)
1-10 24.00
Contact us for qty 11 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 23HS5821D7B55

Phase:2

Step Angle: 1.8 deg

Frame Size: 57 x 57mm

Body Length: 51mm

Shaft Diameter: Φ7mm with flat ,with hole

Shaft Length: 18.6mm

Lead Length: 320mm

Weight: 0.63kg


Holding Torque



Ncm

Rated

Current/Phase

A

Phase Resistance

Ohms±10%

Phase Inductance

mH ± 20%

Bipolar(Parallel)

80

3.0

0.6

1.8

Bipolar(Series)

80

1.4

2.4

7.2

Unipolar

57

2.1

1.2

1.8
