17HS4401N

17HS4401N

2 phase,1.8 degree,nema 17,size 42x42x40mm,rated current/phase 1.7A, holding torque 40Ncm(56.6oz.in),single shaft, 4 wires

Price$9.00

Number 50 In Stock

Price Break
Qty Price($)
1-10 9.00
11-20 8.70
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 17HS4401N

Phase:2

Step Angle: 1.8 deg

Holding Torque:40Ncm(56oz.in)

Rated Current/phase: 1.7A

Voltage: 2.55V

Inductance: 2.8mH ± 20%(1KHz)

Phase Resistance: 1.5ohms

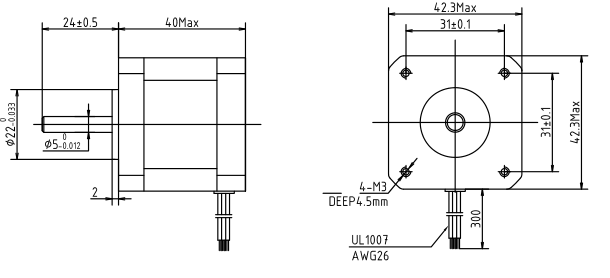

Frame Size: 42 x 42mm

Body Length: 40mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

Number of Leads: 4

Lead Length: 300mm

Weight: 0.35kg
