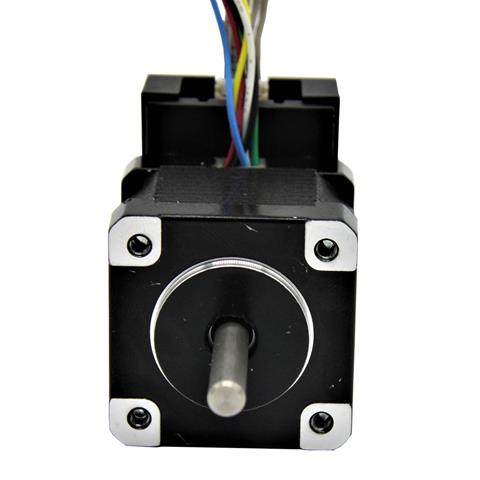

14HYM31625-EG305A with encoder

14HYM31625-EG305A with encoder

2 phase,1.8 degree,nema 14,size 35x35x31mm,6 wires, rated current/phase 0.4A, with holding torque 13Ncm (18.4oz.in),with 500cpr encoder

Price$59.80

Number 0 In Stock

Price Break
Qty Price($)
1-3 59.80
4-10 57.80
11-20 55.80
Contact us for qty 21 & up
Services:
  • quality assurance
  • Service assurance
  • customer service
  • Description
  • Specifications
  • Customize
  • Downloads
  • Ask a Question

Model: 14HYM31625-EG305A

with 500cpr encoder

Phase:2

Step Angle: 1.8 deg

Holding Torque: 13Ncm(18.4oz.in)

Rated Current/phase: 0.4A

Voltage: 12V

Inductance: 16.5mH ± 20%(1KHz)

Phase Resistance: 25ohms



Frame Size: 35 x 35mm

Body Length: 31mm

Shaft Diameter: Φ5mm

Front Shaft Length: 24mm

Number of Leads: 6

Lead Length: 300mm
